24RC4S06 NA005
Part number：
24RC4S06 NA005
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：

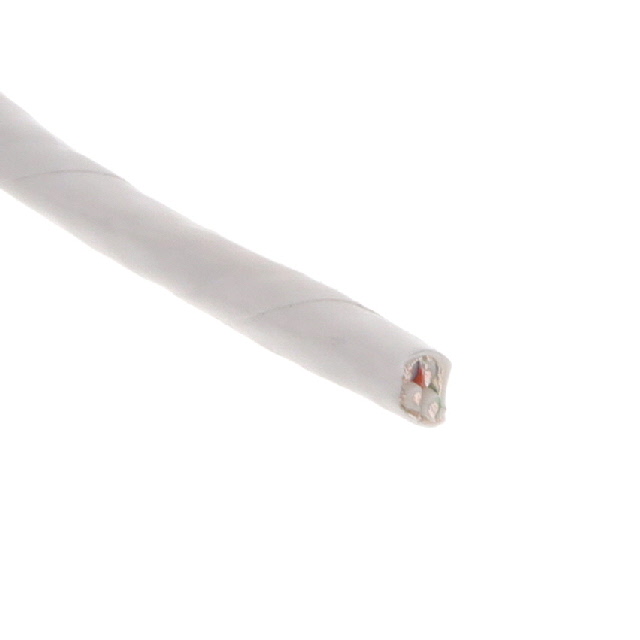

CABLE 4COND 24AWG NAT SHLD 100'
package：
Spool
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1617
minimum : 0
quantity
unit price
price
1
640.34
640.34
3
633.87
1901.61
specifications
  • Length
    100.0' (30.5m)
  • Wire Gauge
    24 AWG
  • Jacket (Insulation) Material
    Polytetrafluoroethylene (PTFE)
  • Conductor Strand
    19/36
  • Operating Temperature
    -55°C ~ 200°C
  • Number of Conductors
    4
  • Cable Type
    Multi-Conductor
  • Jacket (Insulation) Diameter
    0.142" (3.61mm)
  • Conductor Insulation
    Polytetrafluoroethylene (PTFE)
  • Jacket (Insulation) Thickness
    0.0098" (0.250mm)
  • Shield Coverage
    85%
  • Shield Material
    Copper, Silver Coated
  • Shield Type
    Braid
  • Conductor Material
    Copper, Silver Coated
  • Jacket Color
    Natural
  • Voltage
    600 V
