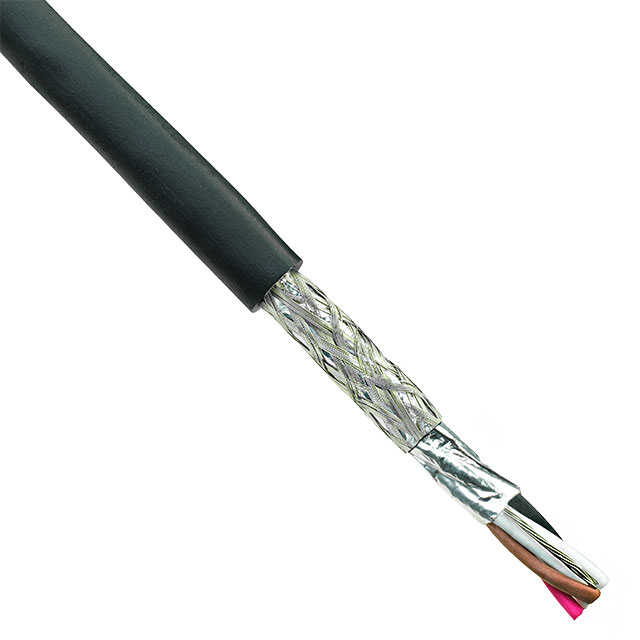

45295 SL199
Part number：
45295 SL199
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：
MULTI-PAIR 10COND 20AWG 1000'
package：
Spool
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
1000
15.15
15150
specifications
  • Features
    Biological Compatibility, Drain Wire, Rip Cord
  • Length
    1000.0' (304.8m)
  • Wire Gauge
    20 AWG
  • Jacket (Insulation) Material
    Thermoplastic Elastomer (TPE)
  • Conductor Strand
    7/28
  • Operating Temperature
    -50°C ~ 125°C
  • Number of Conductors
    10 (5 Pair Twisted)
  • Cable Type
    Multi-Pair
  • Jacket (Insulation) Diameter
    0.454" (11.53mm)
  • Conductor Insulation
    Thermoplastic Elastomer (TPE)
  • Ratings
    ISO 10993
  • Jacket (Insulation) Thickness
    0.0550" (1.397mm)
  • Shield Coverage
    100%, 70%
  • Shield Material
    Suprashield®; Aluminum
  • Shield Type
    Foil, Braid
  • Conductor Material
    Copper, Tinned
  • Jacket Color
    Slate
  • Voltage
    300 V
