5474L SL002
Part number：
5474L SL002
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：

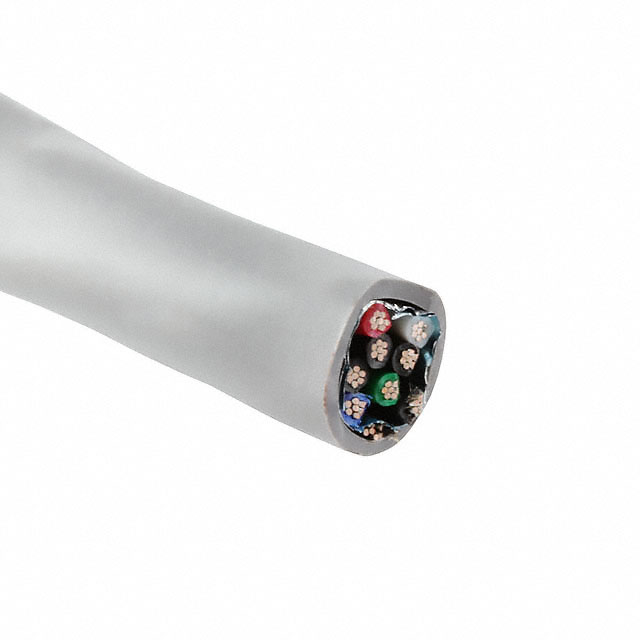

MULTI-PAIR 8COND 24AWG SLATE
package：
Spool
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2100
minimum : 0
quantity
unit price
price
500
1.17
585
specifications
  • Length
    500.0' (152.4m)
  • Wire Gauge
    24 AWG
  • Jacket (Insulation) Material
    Low Smoke Zero Halogen (LSZH)
  • Conductor Strand
    7/32
  • Operating Temperature
    -20°C ~ 75°C
  • Number of Conductors
    8 (4 Pair Twisted)
  • Cable Type
    Multi-Pair
  • Jacket (Insulation) Diameter
    0.240" (6.10mm)
  • Conductor Insulation
    Low Smoke Zero Halogen (LSZH)
  • Jacket (Insulation) Thickness
    0.0250" (0.635mm)
  • Shield Coverage
    100%
  • Shield Material
    Aluminum
  • Shield Type
    Foil
  • Conductor Material
    Copper, Tinned
  • Jacket Color
    Slate
  • Voltage
    300 V
