71602 WH001
Part number：
71602 WH001
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：

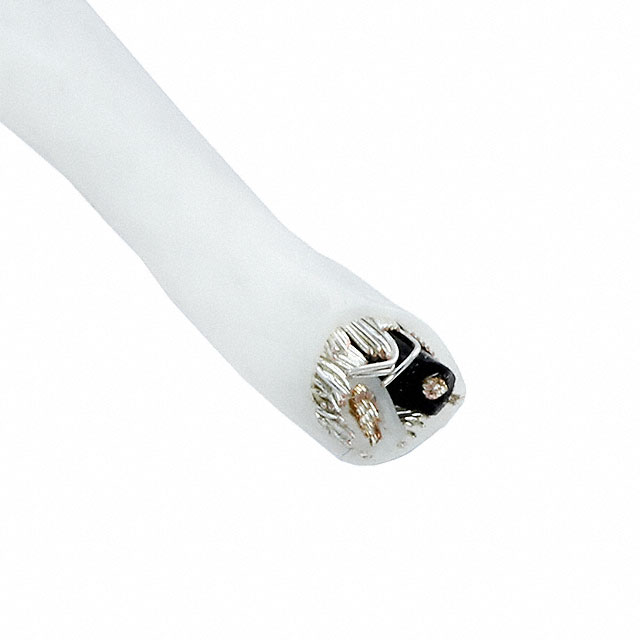

CABLE 2COND 16AWG WHT SHLD 1000'
package：
ROHS status：
Yes
currency：
USD
RFQ Add to RFQ list
inventory 1600
Please send an inquiry form, we will reply immediately
Quick inquiry
specifications
  • Length
    1000.0' (304.8m)
  • Wire Gauge
    16 AWG
  • Jacket (Insulation) Material
    Fluorinated Ethylene-Propylene (FEP)
  • Conductor Strand
    19/29
  • Operating Temperature
    -55°C ~ 200°C
  • Number of Conductors
    2
  • Cable Type
    Multi-Conductor
  • Jacket (Insulation) Diameter
    0.206" (5.23mm)
  • Conductor Insulation
    Polytetrafluoroethylene (PTFE)
  • Jacket (Insulation) Thickness
    0.0118" (0.300mm)
  • Shield Coverage
    85%
  • Shield Material
    Copper, Silver Coated
  • Shield Type
    Braid
  • Conductor Material
    Copper, Silver Coated
  • Jacket Color
    White
  • Voltage
    600 V
  • 13670023222
