929648-05-17-EU
Part number：
929648-05-17-EU
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
3M
describe：

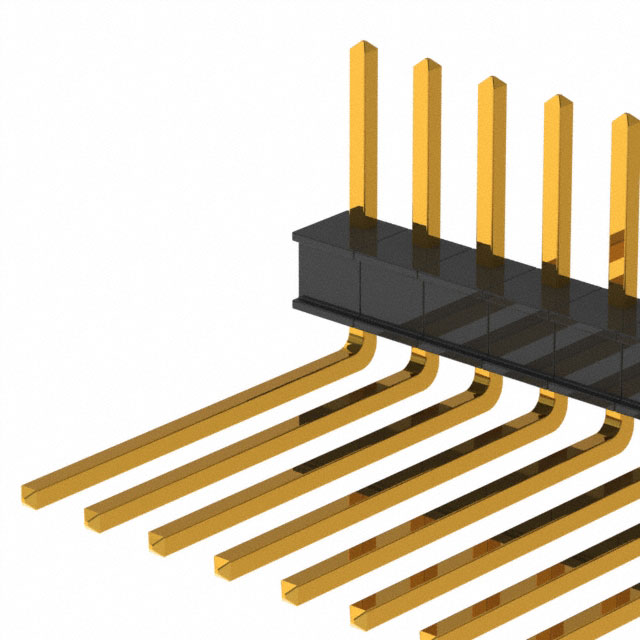

CONN HEADER R/A 17POS 2.54MM
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
1
5.92
5.92
10
5.38
53.8
100
4.74
474
500
4.03
2015
1000
3.43
3430
specifications
  • Connector Type
    Header, Breakaway
  • Current Rating (Amps)
    2.5A
  • Mounting Type
    Through Hole, Right Angle
  • Number of Positions
    17
  • Number of Rows
    1
  • Style
    Board to Board
  • Operating Temperature
    -40°C ~ 105°C
  • Contact Type
    Male Pin
  • Fastening Type
    Push-Pull
  • Number of Positions Loaded
    All
  • Termination
    Solder
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Copper Alloy
  • Insulation Color
    Black
  • Pitch - Mating
    0.100" (2.54mm)
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    10.0µin (0.25µm)
  • Contact Finish - Post
    Gold
  • Contact Finish Thickness - Post
    10.0µin (0.25µm)
  • Contact Shape
    Square
  • Contact Length - Post
    0.520" (13.21mm)
  • Insulation Height
    0.115" (2.92mm)
  • Shrouding
    Unshrouded
  • Insulation Material
    Polycyclohexylenedimethylene Terephthalate (PCT)
  • Contact Length - Mating
    0.235" (5.97mm)
