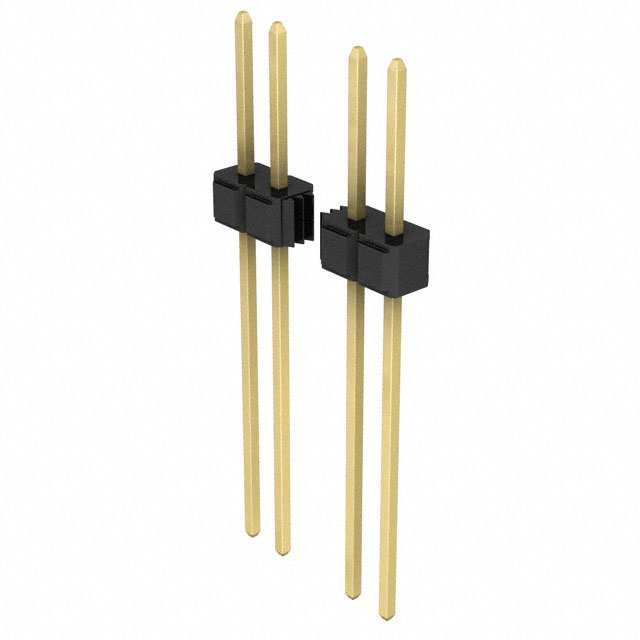

929705-06-12-EU
Part number：
929705-06-12-EU
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
3M
describe：
CONN HEADER VERT 12POS 2.54MM
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
1
4.12
4.12
10
3.74
37.4
100
3.3
330
500
2.8
1400
1000
2.39
2390
specifications
  • Connector Type
    Header, Breakaway
  • Current Rating (Amps)
    2.5A
  • Mounting Type
    Through Hole
  • Number of Positions
    12
  • Number of Rows
    1
  • Style
    Board to Board
  • Operating Temperature
    -40°C ~ 105°C
  • Contact Type
    Male Pin
  • Fastening Type
    Push-Pull
  • Number of Positions Loaded
    All
  • Termination
    Solder
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Copper Alloy
  • Insulation Color
    Black
  • Pitch - Mating
    0.100" (2.54mm)
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    10.0µin (0.25µm)
  • Contact Finish - Post
    Gold
  • Contact Finish Thickness - Post
    10.0µin (0.25µm)
  • Contact Shape
    Square
  • Contact Length - Post
    0.710" (18.03mm)
  • Insulation Height
    0.100" (2.54mm)
  • Shrouding
    Unshrouded
  • Overall Contact Length
    1.128" (28.65mm)
  • Insulation Material
    Polycyclohexylenedimethylene Terephthalate (PCT)
  • Contact Length - Mating
    0.318" (8.08mm)
