ECG.0B.305.CLL
Part number：
ECG.0B.305.CLL
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
REDEL / LEMO
describe：

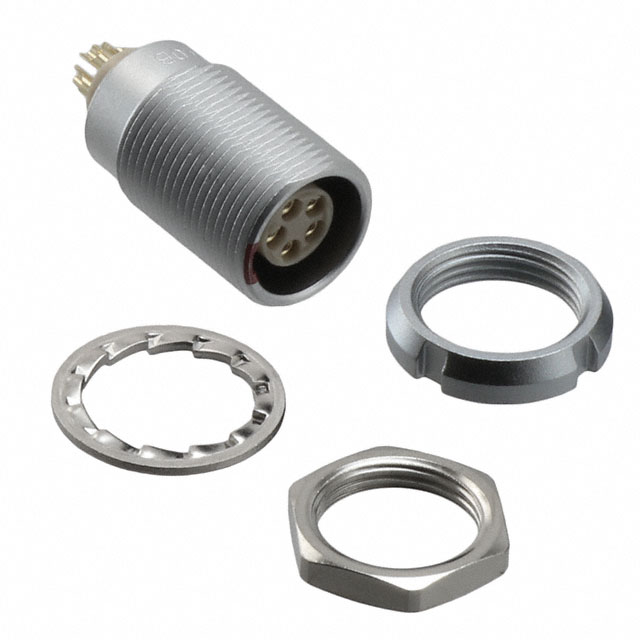

CONN RCPT FMALE 5P GOLD SLDR CUP
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1865
minimum : 0
quantity
unit price
price
1
26.68
26.68
10
23.37
233.7
25
22.36
559
50
21.63
1081.5
100
20.91
2091
250
19.76
4940
500
19.18
9590
specifications
  • Connector Type
    Receptacle, Female Sockets
  • Color
    Silver
  • Current Rating (Amps)
    6.5A
  • Mounting Type
    Panel Mount
  • Shielding
    Shielded
  • Number of Positions
    5
  • Orientation
    G
  • Shell Size - Insert
    305
  • Operating Temperature
    -55°C ~ 250°C
  • Fastening Type
    Push-Pull
  • Termination
    Solder Cup
  • Ingress Protection
    IP50 - Dust Protected
  • Material Flammability Rating
    UL94 V-0
  • Mounting Feature
    Front and Rear Side Nut
  • Contact Material
    Bronze
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    59.0µin (1.50µm)
  • Shell Material
    Brass
  • Shell Finish
    Chrome
  • Insert Material
    Polyetheretherketone (PEEK)
  • Primary Material
    Metal
