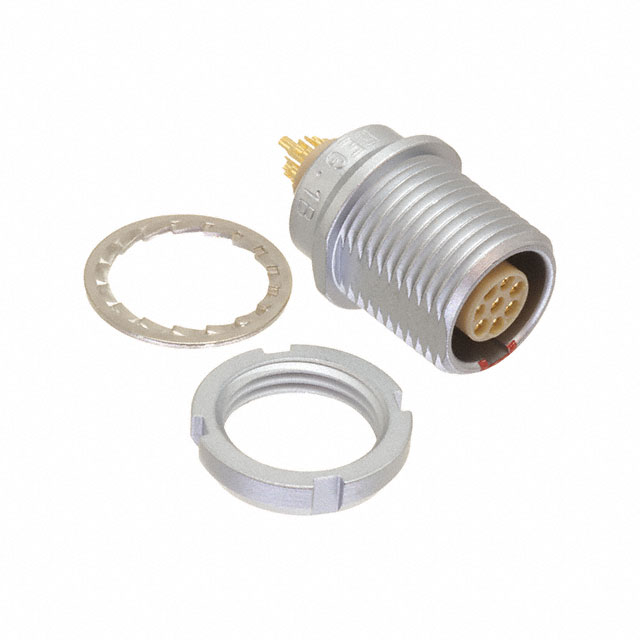

EEG.1B.308.CLL
Part number：
EEG.1B.308.CLL
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
REDEL / LEMO
describe：
CONN RCPT FMALE 8P GOLD SLDR CUP
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1658
minimum : 0
quantity
unit price
price
1
42.51
42.51
10
37.22
372.2
25
35.62
890.5
50
34.47
1723.5
100
33.32
3332
250
31.48
7870
specifications
  • Connector Type
    Receptacle, Female Sockets
  • Color
    Silver
  • Current Rating (Amps)
    5A
  • Mounting Type
    Panel Mount
  • Shielding
    Shielded
  • Number of Positions
    8
  • Orientation
    G
  • Shell Size - Insert
    308
  • Operating Temperature
    -55°C ~ 250°C
  • Fastening Type
    Push-Pull
  • Termination
    Solder Cup
  • Ingress Protection
    IP50 - Dust Protected
  • Material Flammability Rating
    UL94 V-0
  • Mounting Feature
    Bulkhead - Front Side Nut
  • Contact Material
    Bronze
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    59.0µin (1.50µm)
  • Shell Material
    Brass
  • Shell Finish
    Chrome
  • Insert Material
    Polyetheretherketone (PEEK)
  • Primary Material
    Metal
