EEG.1K.306.CLV
Part number：
EEG.1K.306.CLV
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
REDEL / LEMO
describe：

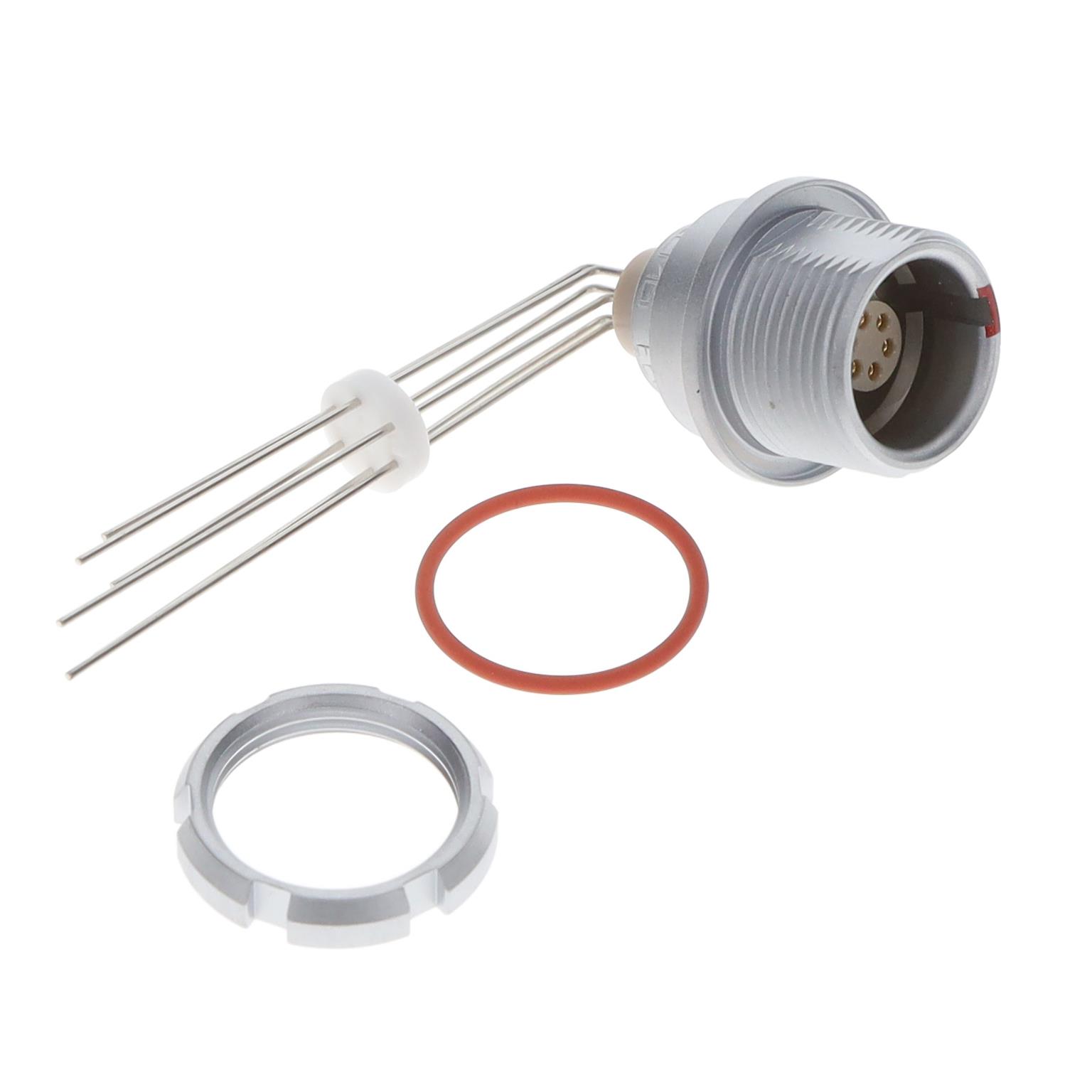

CONN RCPT FMALE 6POS GOLD SOLDER
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1606
minimum : 0
quantity
unit price
price
1
53.5
53.5
10
49.1
491
25
47.21
1180.25
50
45.63
2281.5
100
43.12
4312
specifications
  • Connector Type
    Receptacle, Female Sockets
  • Color
    Silver
  • Current Rating (Amps)
    6A
  • Mounting Type
    Panel Mount, Through Hole, Right Angle
  • Shielding
    Shielded
  • Number of Positions
    6
  • Orientation
    G
  • Shell Size - Insert
    306
  • Operating Temperature
    -55°C ~ 200°C
  • Fastening Type
    Push-Pull
  • Termination
    Solder
  • Ingress Protection
    IP66/IP68 - Dust Tight, Water Resistant, Waterproof
  • Material Flammability Rating
    UL94 V-0
  • Mounting Feature
    Bulkhead - Front Side Nut
  • Contact Material
    Bronze
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    59.0µin (1.50µm)
  • Shell Material
    Brass
  • Shell Finish
    Chrome
  • Insert Material
    Polyetheretherketone (PEEK)
  • Primary Material
    Metal
