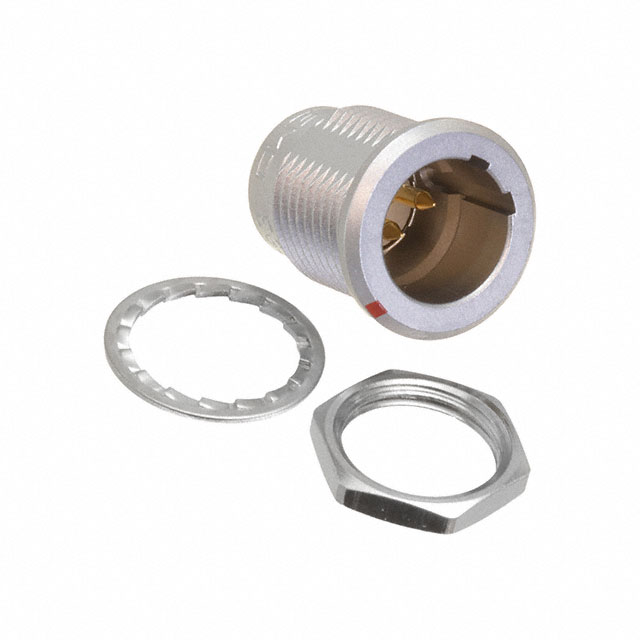

EGJ.1B.302.CLA
Part number：
EGJ.1B.302.CLA
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
REDEL / LEMO
describe：
CONN RCPT MALE 2P GOLD SLDR CUP
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1623
minimum : 0
quantity
unit price
price
1
31.22
31.22
10
27.34
273.4
25
26.16
654
50
25.32
1266
100
24.47
2447
250
23.12
5780
specifications
  • Connector Type
    Receptacle, Male Pins
  • Color
    Silver
  • Current Rating (Amps)
    15A
  • Mounting Type
    Panel Mount
  • Shielding
    Shielded
  • Number of Positions
    2
  • Orientation
    J
  • Shell Size - Insert
    302
  • Operating Temperature
    -55°C ~ 250°C
  • Fastening Type
    Push-Pull
  • Termination
    Solder Cup
  • Ingress Protection
    IP50 - Dust Protected
  • Material Flammability Rating
    UL94 V-0
  • Mounting Feature
    Bulkhead - Rear Side Nut
  • Contact Material
    Brass
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    39.4µin (1.00µm)
  • Shell Material
    Brass
  • Shell Finish
    Chrome
  • Insert Material
    Polyetheretherketone (PEEK)
  • Primary Material
    Metal
