collect compare

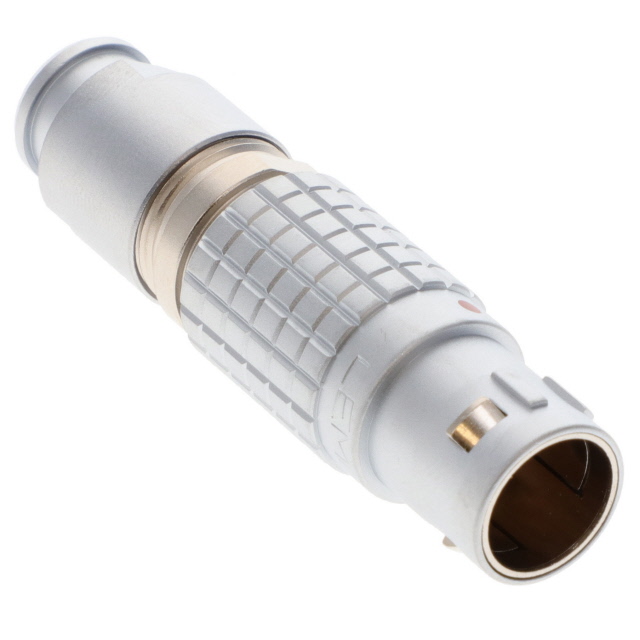

FGB.2B.316.CLAD72Z
Part number：
FGB.2B.316.CLAD72Z
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
REDEL / LEMO
describe：
CONN PLUG MALE 16P GOLD SLDR CUP
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1602
minimum : 0
quantity
unit price
price
1
92.27
92.27
10
84.67
846.7
25
81.42
2035.5
50
78.7
3935
100
74.36
7436
specifications
  • Features
    Backshell
  • Connector Type
    Plug, Male Pins
  • Color
    Silver
  • Current Rating (Amps)
    6A
  • Mounting Type
    Free Hanging (In-Line)
  • Shielding
    Shielded
  • Number of Positions
    16
  • Orientation
    B
  • Shell Size - Insert
    316
  • Operating Temperature
    -55°C ~ 250°C
  • Fastening Type
    Push-Pull
  • Termination
    Solder Cup
  • Ingress Protection
    IP50 - Dust Protected
  • Cable Opening
    0.244" ~ 0.283" (6.20mm ~ 7.20mm)
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Brass
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    39.4µin (1.00µm)
  • Shell Material
    Brass
  • Shell Finish
    Chrome
  • Insert Material
    Polyetheretherketone (PEEK)
  • Backshell Material, Plating
    Brass, Chrome
  • Primary Material
    Metal
  • 13670023222
