M1105 SL005
Part number：
M1105 SL005
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：

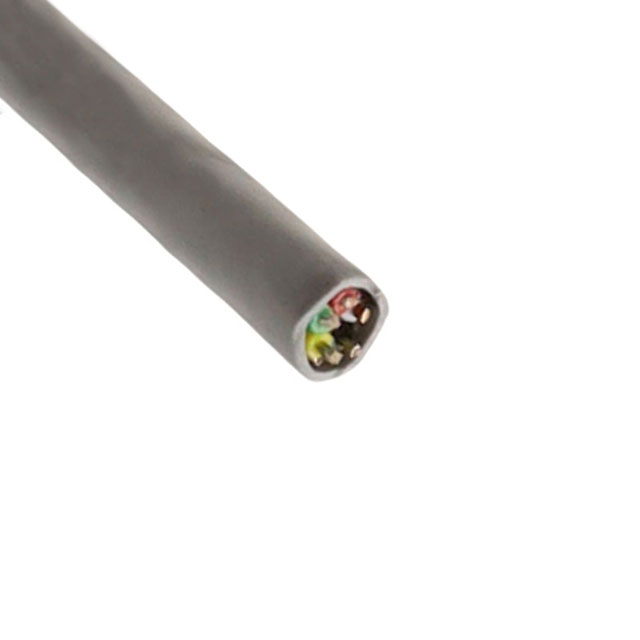

CABLE 5CON 24AWG SLATE SHLD 100'
package：
Spool
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1609
minimum : 0
quantity
unit price
price
1
250.93
250.93
10
232.53
2325.3
25
224.17
5604.25
50
222.49
11124.5
100
220.29
22029
specifications
  • Length
    100.0' (30.5m)
  • Wire Gauge
    24 AWG
  • Jacket (Insulation) Material
    Poly-Vinyl Chloride (PVC)
  • Conductor Strand
    10/34
  • Operating Temperature
    -20°C ~ 75°C
  • Number of Conductors
    5
  • Cable Type
    Multi-Conductor
  • Jacket (Insulation) Diameter
    0.217" (5.51mm)
  • Conductor Insulation
    Polyethylene (PE)
  • Ratings
    UL Style 2094
  • Jacket (Insulation) Thickness
    0.0200" (0.508mm)
  • Shield Coverage
    90%
  • Shield Material
    Copper, Tinned
  • Shield Type
    Braid
  • Conductor Material
    Copper, Tinned
  • Jacket Color
    Slate
  • Voltage
    300 V
