M1115 SL199
Part number：
M1115 SL199
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：

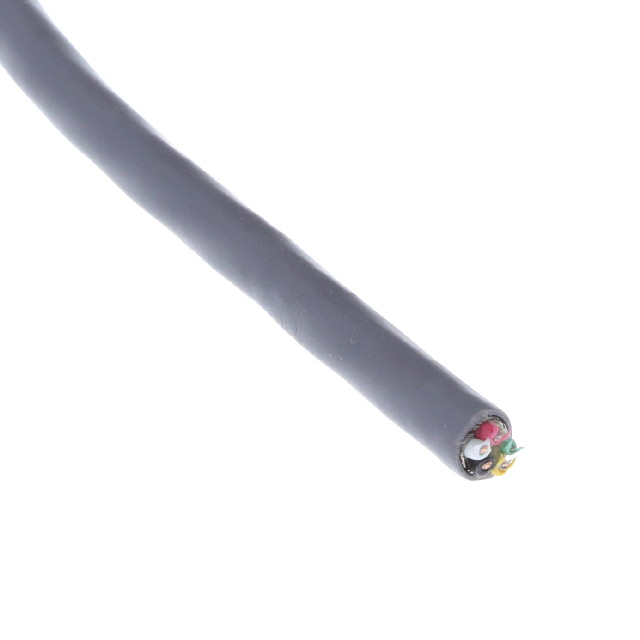

CABLE 5COND 22AWG SHLD 3000'
package：
Spool
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
1000
4.27
4270
specifications
  • Length
    3000' (914.4m)
  • Wire Gauge
    22 AWG
  • Jacket (Insulation) Material
    Poly-Vinyl Chloride (PVC)
  • Conductor Strand
    19/34
  • Operating Temperature
    -20°C ~ 75°C
  • Number of Conductors
    5
  • Cable Type
    Multi-Conductor
  • Jacket (Insulation) Diameter
    0.193" (4.90mm)
  • Conductor Insulation
    Polyethylene (PE)
  • Ratings
    UL Style 2094
  • Jacket (Insulation) Thickness
    0.0200" (0.508mm)
  • Shield Coverage
    90%
  • Shield Material
    Copper, Tinned
  • Shield Type
    Braid
  • Conductor Material
    Copper, Tinned
  • Jacket Color
    Slate
  • Voltage
    300 V
