M1128 SL005
Part number：
M1128 SL005
CLASSIFICATION：
Cables, Wires
manufacturer：
Alpha Wire
describe：

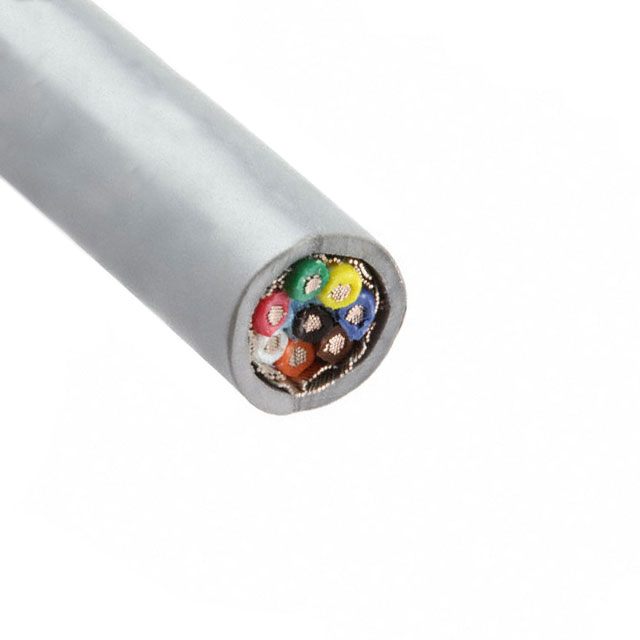

CABLE 8CON 20AWG SLATE SHLD 100'
package：
Spool
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1609
minimum : 0
quantity
unit price
price
1
450.18
450.18
10
417.17
4171.7
25
402.16
10054
50
399.16
19958
100
395.21
39521
specifications
  • Length
    100.0' (30.5m)
  • Wire Gauge
    20 AWG
  • Jacket (Insulation) Material
    Poly-Vinyl Chloride (PVC)
  • Conductor Strand
    26/34
  • Operating Temperature
    -20°C ~ 75°C
  • Number of Conductors
    8
  • Cable Type
    Multi-Conductor
  • Jacket (Insulation) Diameter
    0.328" (8.33mm)
  • Conductor Insulation
    Polyethylene (PE)
  • Ratings
    UL Style 2094
  • Jacket (Insulation) Thickness
    0.0350" (0.889mm)
  • Shield Coverage
    90%
  • Shield Material
    Copper, Tinned
  • Shield Type
    Braid
  • Conductor Material
    Copper, Tinned
  • Jacket Color
    Slate
  • Voltage
    300 V
