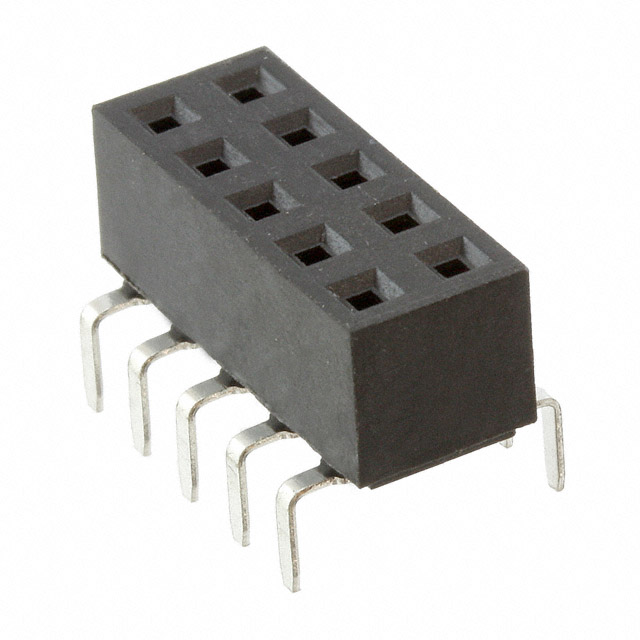

M20-7850546
Part number：
M20-7850546
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
Harwin
describe：
CONN RCPT 10POS 0.1 TIN PCB
package：
Tube
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2411
minimum : 0
quantity
unit price
price
1
1.43
1.43
43
1.13
48.59
129
1.08
139.32
516
0.89
459.24
1032
0.79
815.28
5031
0.69
3471.39
10019
0.66
6612.54
specifications
  • Connector Type
    Receptacle, Bottom or Top Entry
  • Voltage Rating
    1000V
  • Current Rating (Amps)
    3A
  • Mounting Type
    Through Hole
  • Number of Positions
    10
  • Style
    Board to Board or Cable
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose, Industrial, Telecommunications
  • Contact Type
    Female Socket
  • Fastening Type
    Push-Pull
  • Number of Positions Loaded
    All
  • Termination
    Solder
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Phosphor Bronze
  • Insulation Color
    Black
  • Pitch - Mating
    0.100" (2.54mm)
  • Contact Finish - Mating
    Tin
  • Contact Finish - Post
    Tin
  • Contact Shape
    Square
  • Contact Length - Post
    0.118" (3.00mm)
  • Insulation Height
    0.197" (5.00mm)
  • Insulation Material
    Polyamide (PA6T), Nylon 6T
  • Row Spacing - Mating
    0.100" (2.54mm)
  • Number of Rows
    2
