M22-6361042
Part number：
M22-6361042
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
Harwin
describe：

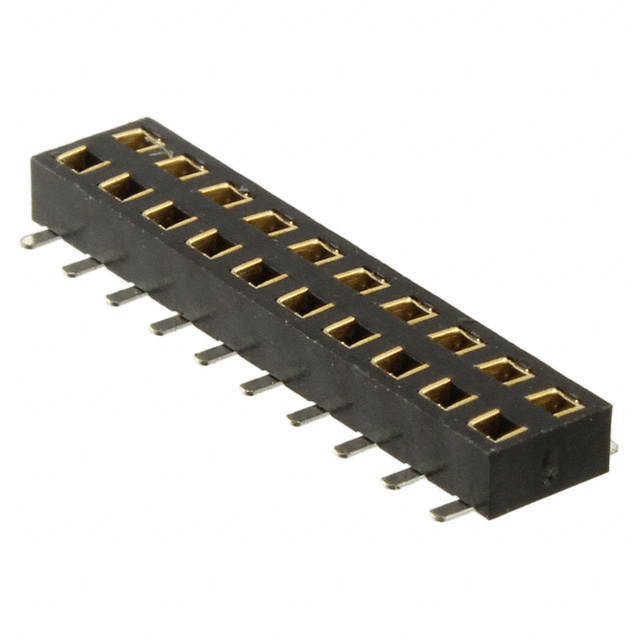

CONN RCPT 20POS 0.079 GOLD SMD
package：
Tube
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2538
minimum : 0
quantity
unit price
price
1
6.03
6.03
28
5.18
145.04
112
4.82
539.84
504
4.1
2066.4
1008
3.5
3528
specifications
  • Features
    Board Guide
  • Connector Type
    Receptacle, Bottom or Top Entry
  • Current Rating (Amps)
    2A
  • Mounting Type
    Surface Mount
  • Number of Positions
    20
  • Style
    Board to Board or Cable
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose, Industrial, Telecommunications
  • Contact Type
    Female Socket
  • Fastening Type
    Push-Pull
  • Number of Positions Loaded
    All
  • Termination
    Solder
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Phosphor Bronze
  • Mated Stacking Heights
    3.6mm, 4.35mm, 4.6mm
  • Insulation Color
    Black
  • Pitch - Mating
    0.079" (2.00mm)
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    Flash
  • Contact Finish - Post
    Tin
  • Contact Shape
    Square
  • Insulation Height
    0.079" (2.00mm)
  • Insulation Material
    Polyamide (PA9T), Nylon 9T
  • Row Spacing - Mating
    0.079" (2.00mm)
  • Number of Rows
    2
