PHG.00.302.CLLD35
Part number：
PHG.00.302.CLLD35
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
REDEL / LEMO
describe：

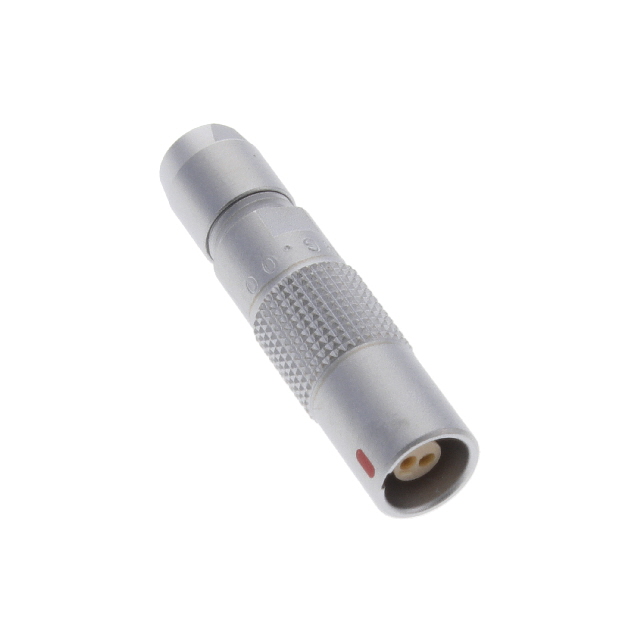

CONN RCPT FMALE 2P GOLD SLDR CUP
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1634
minimum : 0
quantity
unit price
price
1
31.84
31.84
10
27.88
278.8
25
26.68
667
50
25.82
1291
100
24.96
2496
250
23.58
5895
specifications
  • Features
    Backshell
  • Connector Type
    Receptacle, Female Sockets
  • Color
    Silver
  • Current Rating (Amps)
    5A
  • Mounting Type
    Free Hanging (In-Line)
  • Shielding
    Shielded
  • Number of Positions
    2
  • Orientation
    G
  • Shell Size - Insert
    302
  • Operating Temperature
    -55°C ~ 250°C
  • Fastening Type
    Push-Pull
  • Termination
    Solder Cup
  • Ingress Protection
    IP50 - Dust Protected
  • Cable Opening
    0.106" ~ 0.138" (2.70mm ~ 3.50mm)
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Bronze
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    59.0µin (1.50µm)
  • Shell Material
    Brass
  • Shell Finish
    Chrome
  • Insert Material
    Polyetheretherketone (PEEK)
  • Backshell Material, Plating
    Brass, Chrome
  • Primary Material
    Metal
