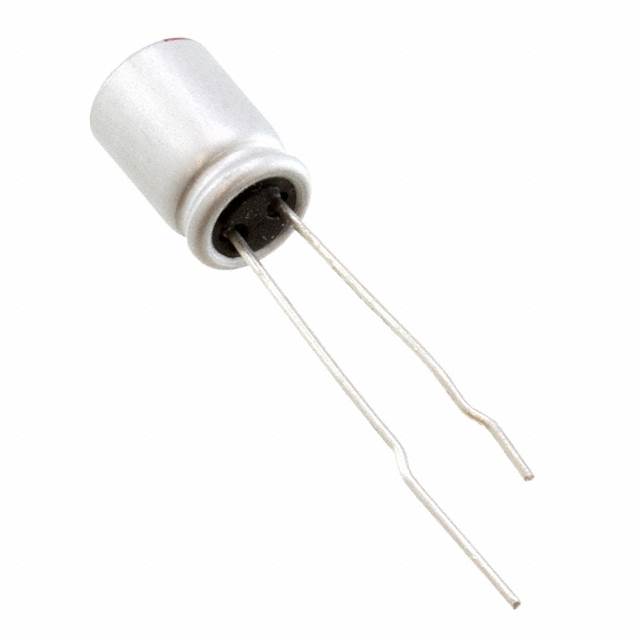

RNU1C101MDS1JX
Part number：
RNU1C101MDS1JX
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：
CAP ALUM POLY 100UF 20% 16V T/H
package：
Tape & Box (TB)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
2000
0.22
440
4000
0.21
840
10000
0.2
2000
14000
0.2
2800
50000
0.19
9500
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.248" Dia (6.30mm)
  • Mounting Type
    Through Hole
  • Type
    Polymer
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.098" (2.50mm)
  • ESR (Equivalent Series Resistance)
    25mOhm
  • Lifetime @ Temp.
    2000 Hrs @ 105°C
  • Height - Seated (Max)
    0.453" (11.50mm)
  • Capacitance
    100 µF
  • Voltage - Rated
    16 V
  • Ripple Current @ Low Frequency
    282 mA @ 120 Hz
  • Ripple Current @ High Frequency
    2.82 A @ 100 kHz
